Electronic Dice

Roll a digital dice using a push button and display a random number with LEDs.

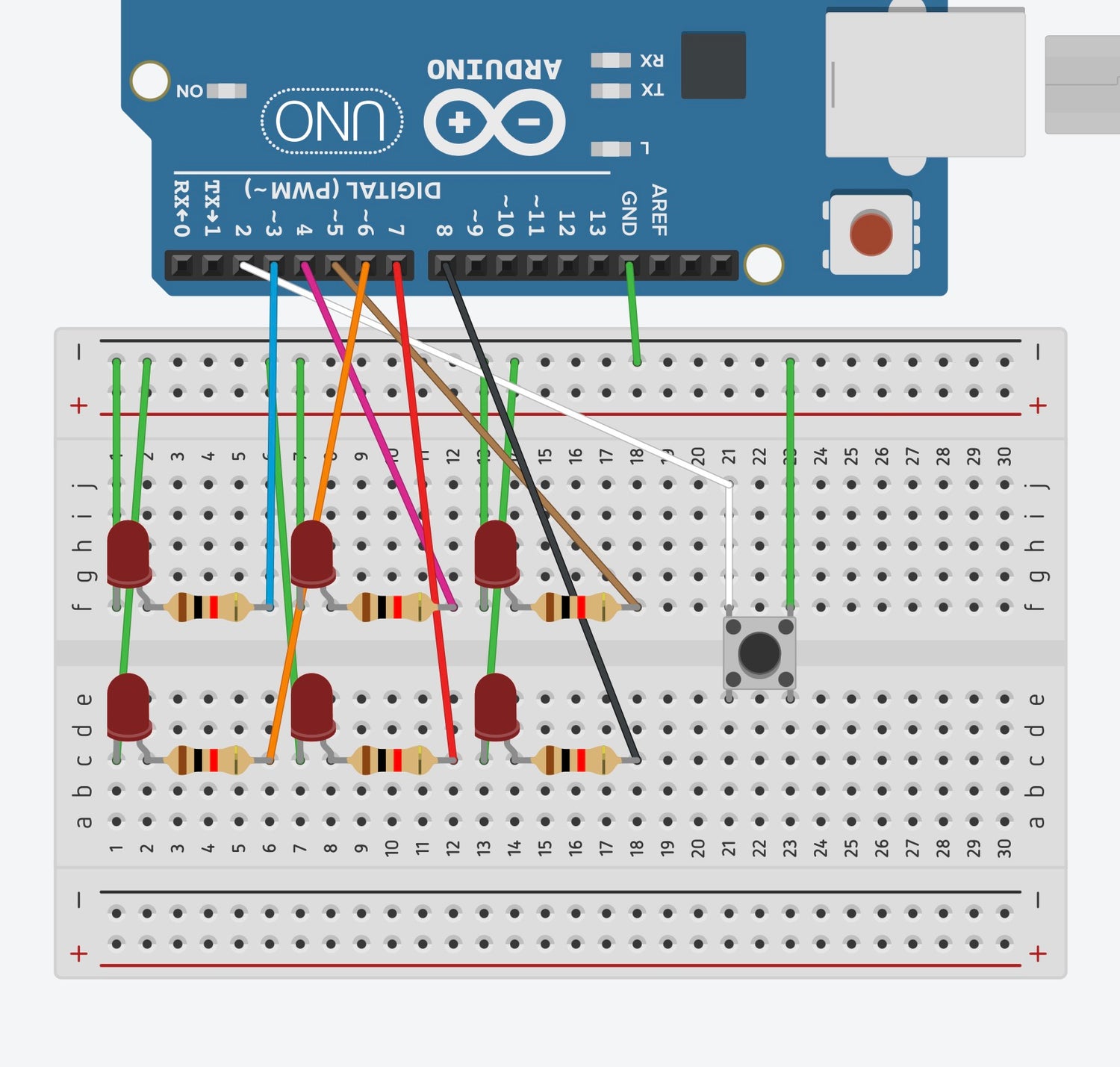

Components Needed

  • Arduino Uno
  • 6 LEDs
  • 6 × 220Ω Resistors
  • Push Button
  • Breadboard
  • Jumper Wires

  • How It Works

    When the button is pressed, the Arduino generates a random number between 1 and 6. The corresponding LED lights up to represent the dice result.

  • What You'll Learn

    ✅ Random Numbers

    ✅ Push Button Inputs

    ✅ Multiple Outputs

    ✅ Arrays

    ✅ Interactive Arduino Projects

  • Code

    const int buttonPin = 2;

    int leds[] = {3, 4, 5, 6, 7, 8};

    void setup() {

    pinMode(buttonPin, INPUT_PULLUP);

    for (int i = 0; i < 6; i++) {
    pinMode(leds[i], OUTPUT);
    }

    randomSeed(analogRead(A0));
    }

    void loop() {

    if (digitalRead(buttonPin) == LOW) {

    int dice = random(1, 7);

    for (int i = 0; i < 6; i++) {
    digitalWrite(leds[i], LOW);
    }

    digitalWrite(leds[dice - 1], HIGH);

    delay(300);
    }
    }
